Migrate with AWS Application Migration Service (MGN)


This guide will demonstrate how to migrate a set of machines to AWS using Application Migration Service (MGN). After an installation key has been provided, the MGN agent can be downloaded and installed from the Cloudamize application. Machines which are candidates for migration to AWS will then be available in the MGN dashboard.
Alternatively the Cloudamize migration report can be downloaded and used to create a MGN migration blueprint.
Follow the steps below to begin.

Navigate to the Migrate Your Environment page

Launch the application to view the results summary page. From here, click View Details.


From the results dashboard, click Dashboard -> Migration Planner.

Click Migrate Your Environment in the More Tools menu at the top-right of the canvas.


Select MGN at the top left of the Migrate Your Environment window.

  1. Select a design to use for the migration.

  2. Select the groups to migrate.

  3. Click Apply.

  4. In the table below, select which machines to migrate.
    Note: Cloudamize does not ensure that the MGN agent prerequisites are met. In cases where installation via the console cannot be completed please follow the MGN installation instructions for a command line based installation.

To install via the Cloudamize Console

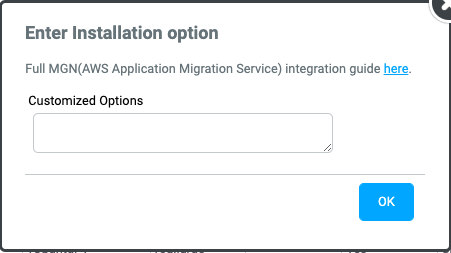

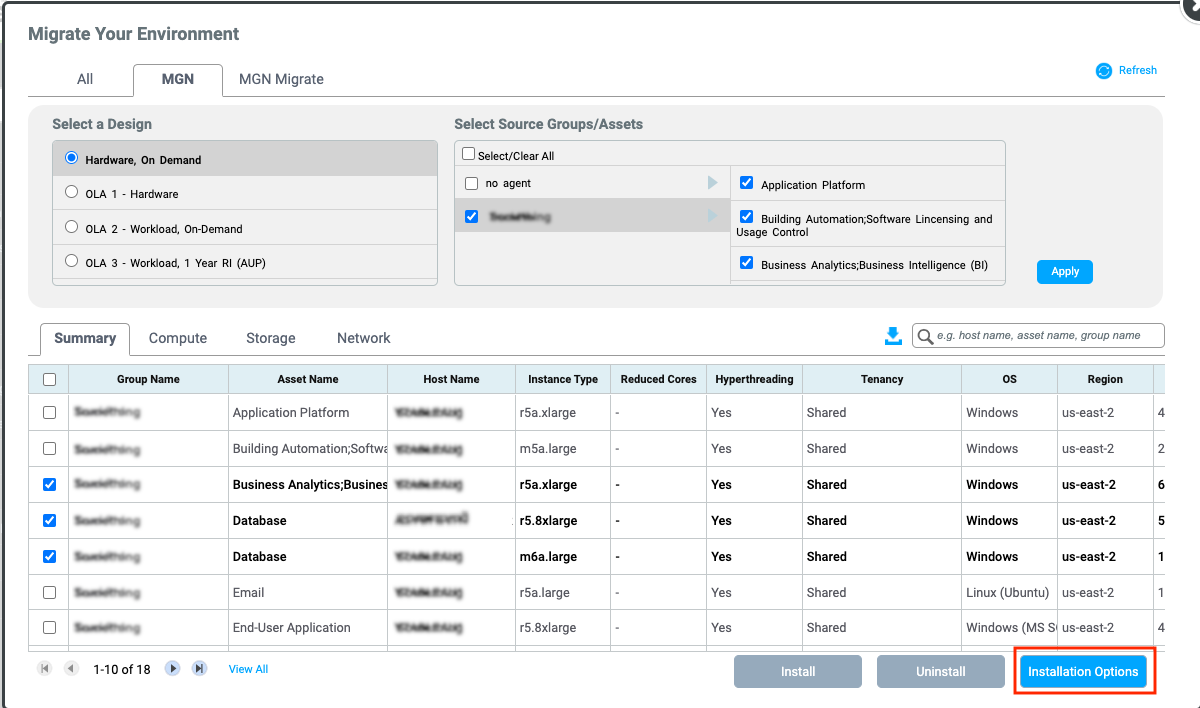

Click on Installation Options to enter the Installation Key for MGN. Then click Install to install the MGN agent and begin the migration process.


You can find your MGN installation token in your MGN account. Refer to AWS - Application Migration Service documentation for further help.

In the far right column for each machine, click on the log icon to view a detailed log for that machine.

To Install via Command Line

You can also install the MGN agent through the command line interface. Refer to AWS - Application Migration Service documentation for further help.

The MGN agent will take approximately 10-15 minutes to download and install. Afterwards, the machine will be added to the MGN database, and the installation will complete.


Creating MGN Blueprint

It is also possible to use the migration plan as a starting point for MGN blueprints.

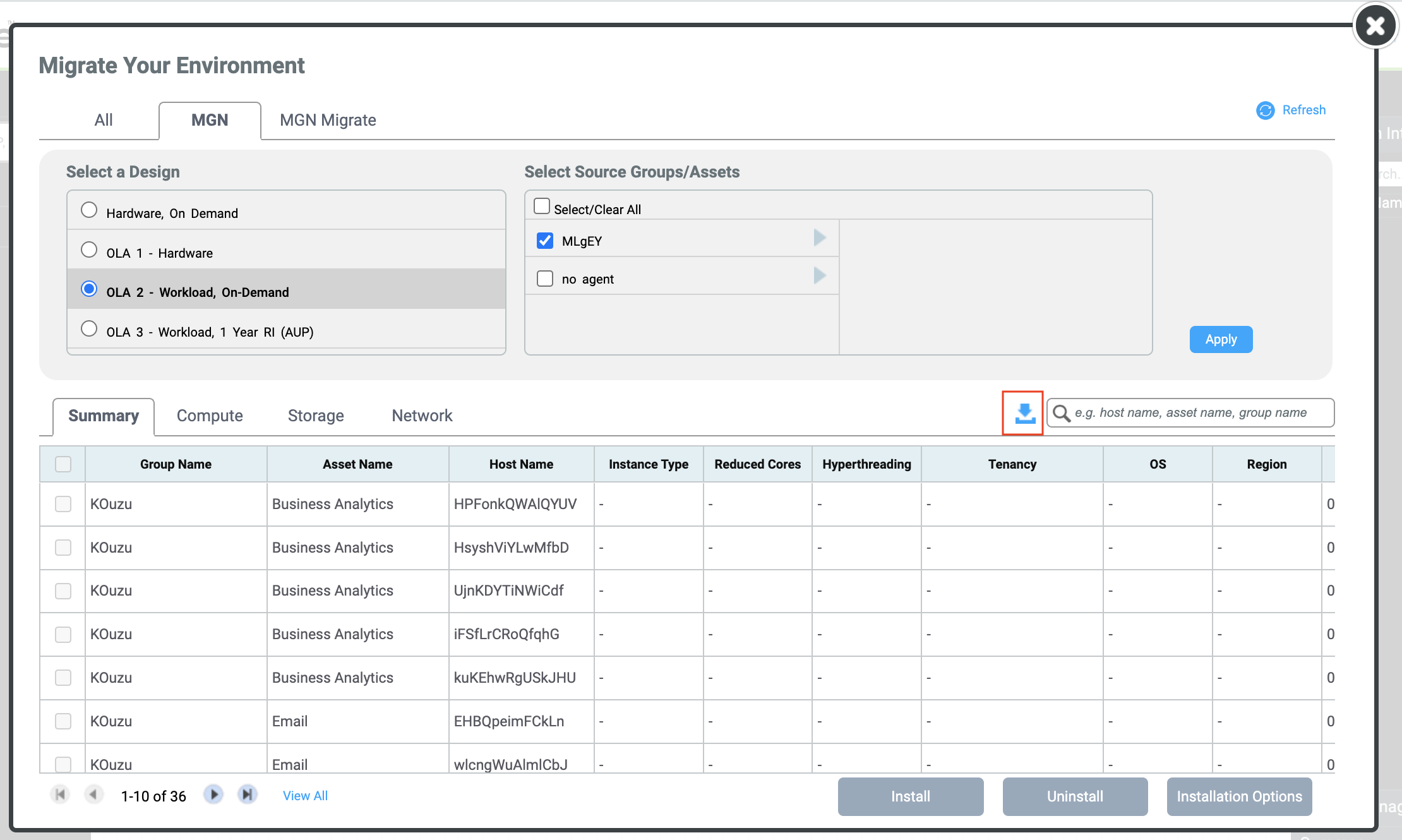

To begin, simply download the migration plan and edit the downloaded CSV file to match the MGN blueprint specification.

* Please note that machines using our agentless data collection option will not be able to be migrated via MGN.

Contact if you have any questions or require any assistance.
