About Inventory Settings
This document provides guidelines and reference materials for navigating and using the Inventory Settings page within your assessment.

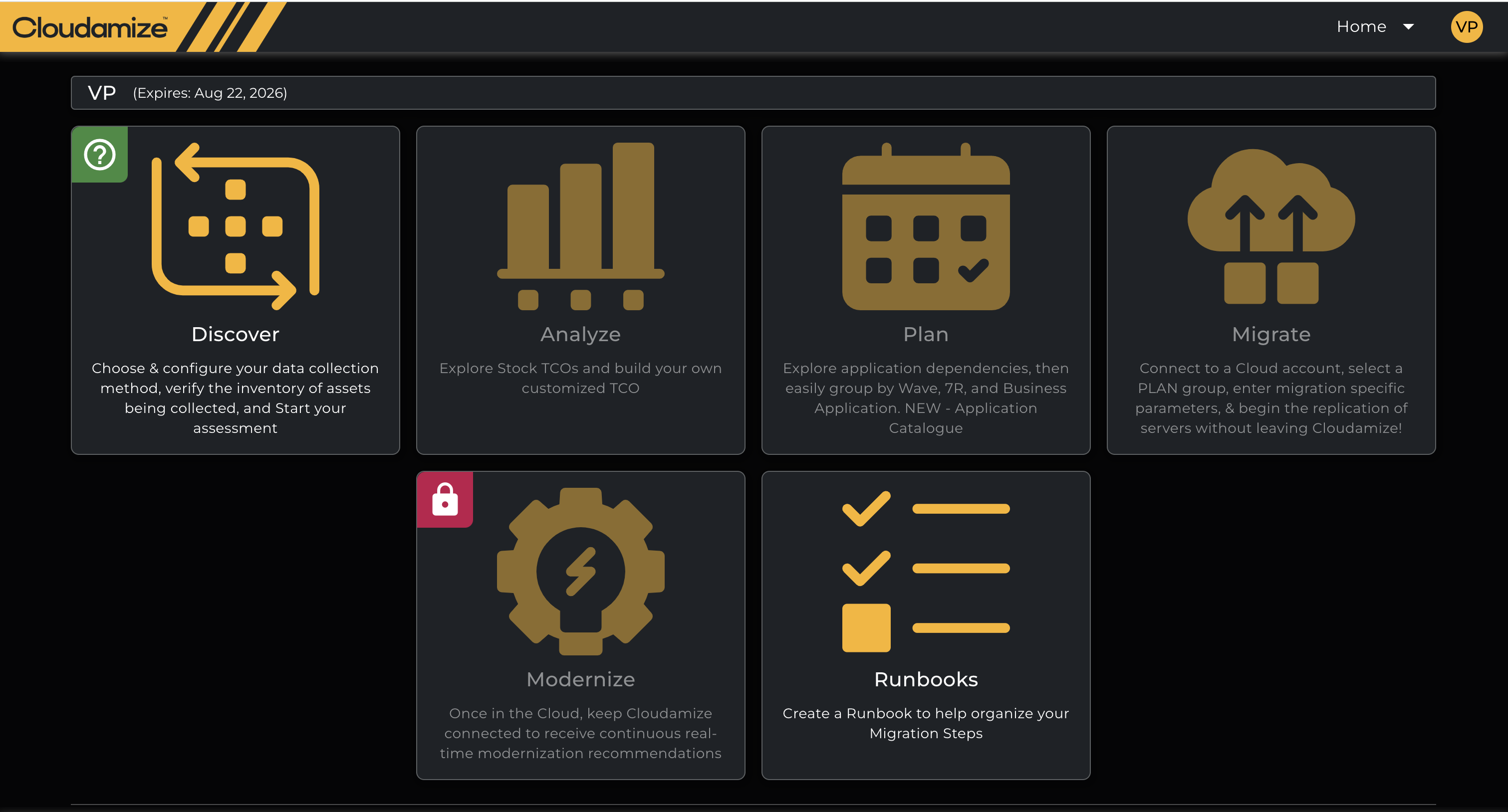

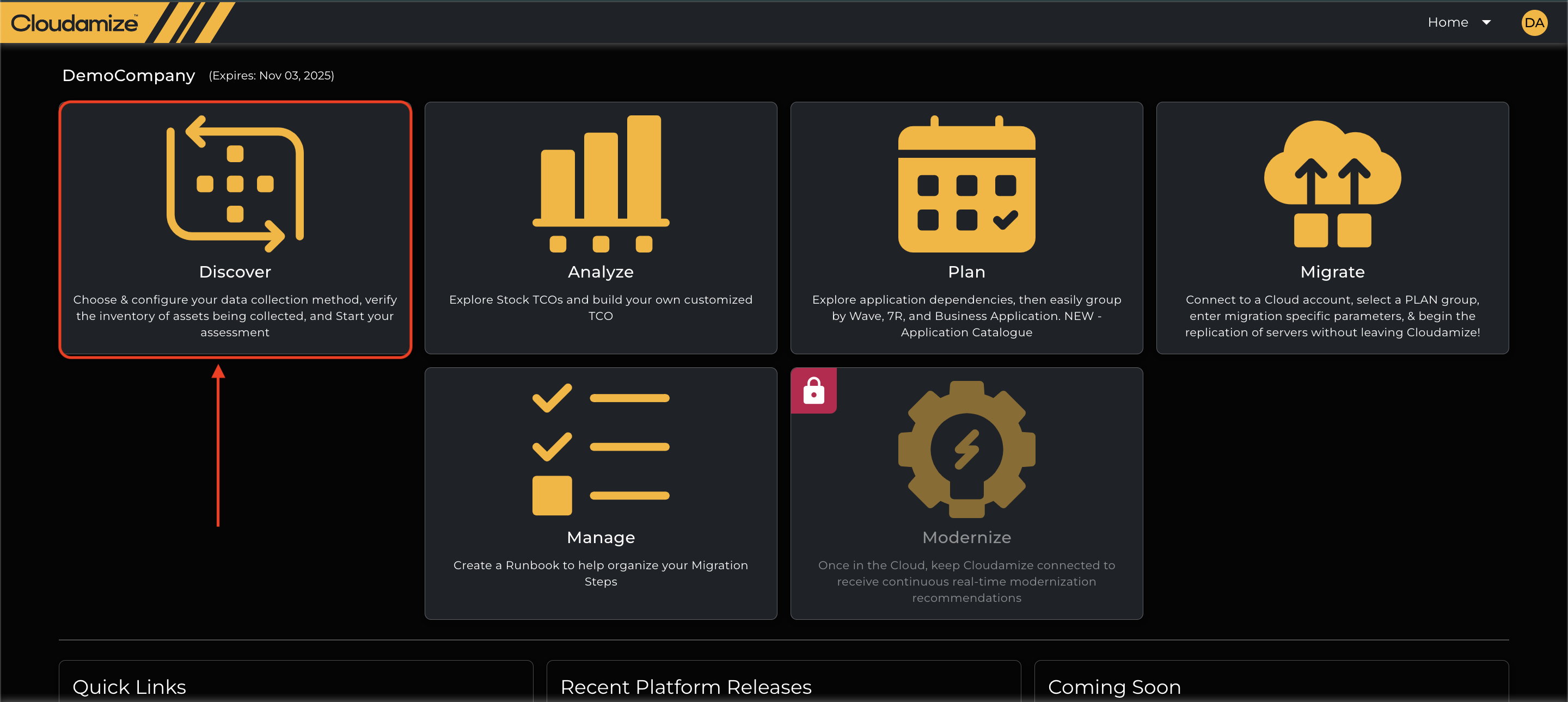

Select the Discover Option from the Cloudamize Landing page to access the Inventory settings.

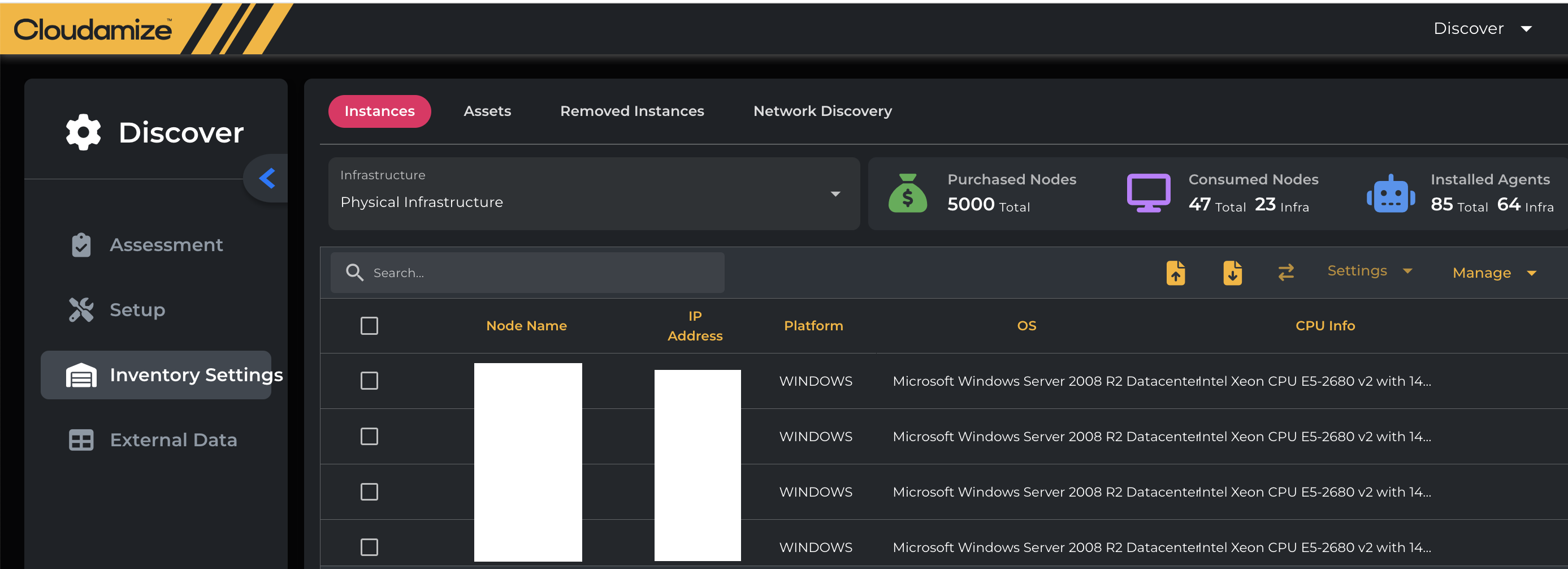

Instances Tab(anonymized)
Instances Tab
Node Name - This is the hostname of the machine being assessed
IP Address - Local IP Addresses of the machine being monitored
Platform - Shows the OS Platform (Linux, Windows, etc.)
OS - Shows the OS Platform Edition/Version(Microsoft Windows Server 2012 R2 Standard, etc.)
CPU Info - CPU Model, Speed, and Threads assigned per node
MS SQL details - Shows SQL server details with the Edition(SQL Server 2022 16.0.1000.6 (RTM) Standard Edition, etc.)
Asset - Shows which Asset group the node is in (this will show “Default” if not customized)
Use Data from - Shows the options(Hypervisor, Agent, etc.) when both the VMware and Agent-based Data collection are being used for the machines being monitored
Agent Status - Shows whether the agent is Collecting Data, Inactive, or Sleeping
Data Collection Mode - Lists the source (Agent, AgentlessDC) of data collection
Data Collection - This allows you to toggle data collection for the specific node
Assessment Scope - This allows you to toggle nodes in and out of the scope of the assessment results
Reason - If a node is excluded from the assessment scope, this will show the reason for the exclusion (e.g., User Disabled)
MS SQL Data Collection Status: This will provide you with the status of the Microsoft SQL data collected from the node.
MS SQL Data Collection Status will have the following values and their meanings.
N/A: The machine does not have the MS SQL edition
Collecting: MS SQL data is successfully collected.
Any error message: There could be an error while collecting the MS SQL data. The error may be due to the PowerShell version, .NET Version, etc. The MS SQL Data Collection prerequisite is available on our KB here.
Note: If you add nodes after the data collection has started, Cloudamize will automatically include those new nodes in the assessment scope. If newly added nodes were not added and are required for the final assessment, please get in touch with the Cloudamize Helpdesk for assistance at helpdesk@cloudamize.com or via our portal.
Downloading and Uploading Infrastructure and Asset Information

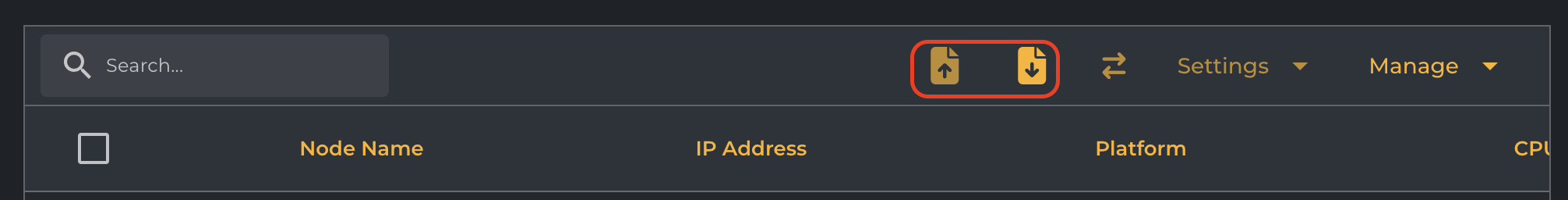

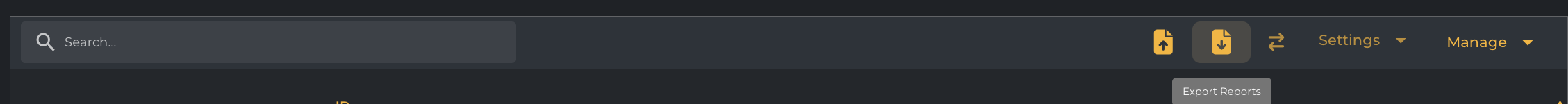

We can download an overview of the infrastructure by clicking the Download button (see screenshot).
We can also upload an asset group mapping in .csv format by clicking the Upload button (see screenshot).

Downloading

Uploading

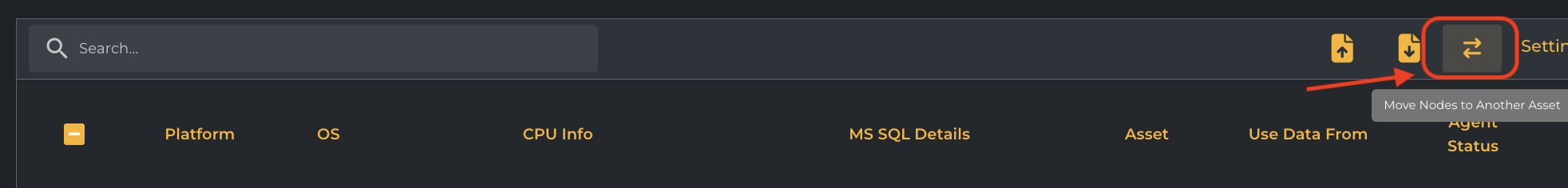

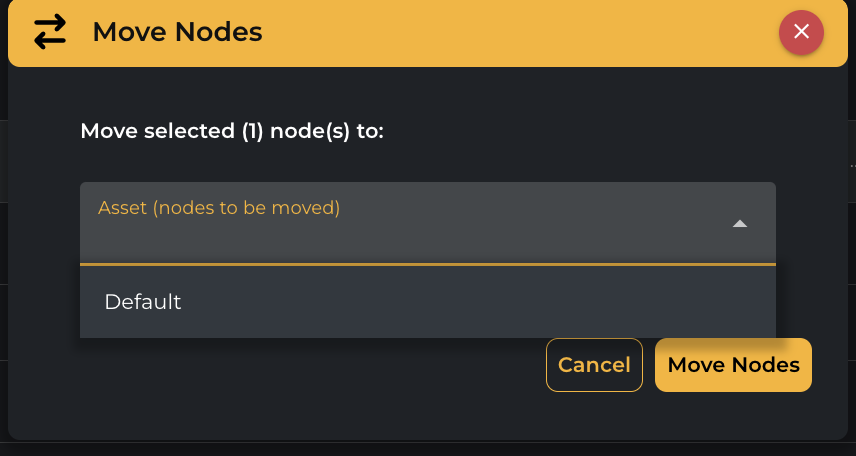

The symbol ⇄ indicates the Move Nodes to Another asset. The same can be done by selecting the node/nodes and then selecting the preferred Asset to move the selected node through the drop-down button, as shown below.


Move Nodes to Another Asset
Settings and Manage

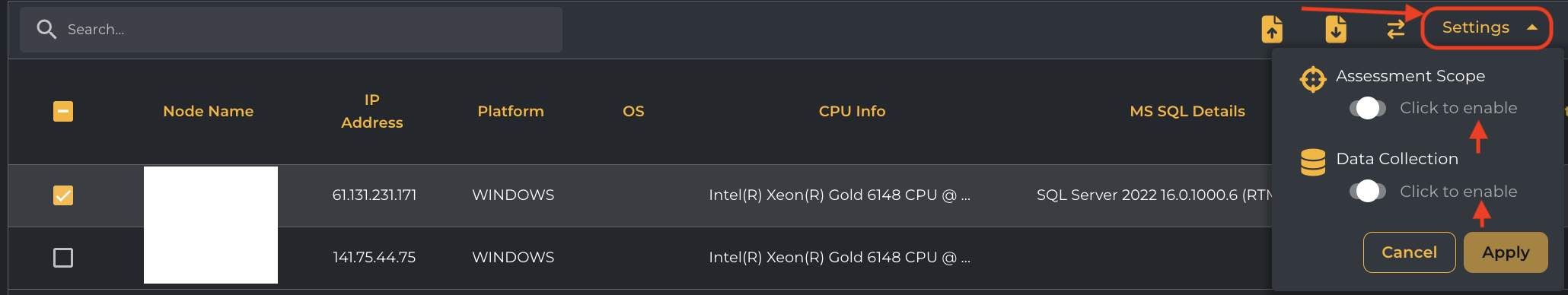

The Settings option gets enabled once you select the Node or multiple nodes, and the drop-down button shows the options(Assessment scope, Data Collection), which will allow you to add the node/nodes into the assessment scope and enable data collection, as shown in the screenshot below.

Settings

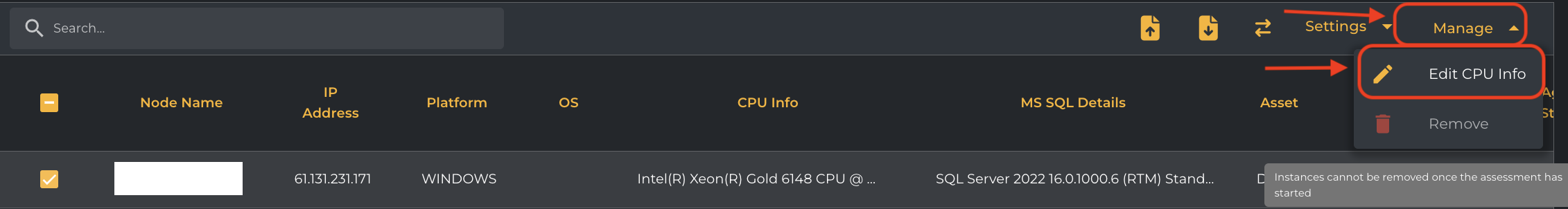

The Manage option gets enabled once you select the Node or multiple nodes, and the drop-down button shows the options(Edit CPU info, Remove). You can edit CPU Info only. Cloudamize can often determine CPU Info (E.g., number of cores) from performance metrics. So if performance metrics are available, then this does not need to be set. This will update the value for selected 1 node(s).

Manage

You can also enter the CPU details for the bulk machines and then upload to the inventory settings through CSV upload. To avail this, on the Instance Settings page, click “Upload Inventory Settings“ to initiate the feature.
Clicking on “Upload Inventory Settings“ will open up the “Upload Inventory Settings to Control Inventory Settings“ pop-up. For the first-time user, it would be advisable to download the Sample CSV by clicking the “Download Template CSV“ button on the pop-up. Sample CSV is essentially the listing of the entire Inventory for the chosen Infrastructure. This downloaded file is also a template for uploading the CSV.

Download Template CSV
Below is a screenshot of the downloaded Sample file. The user can make changes to the records (Asset Name, Assessment Scope, CPU Type) in the CSV and upload it back to the system. It should be noted that the user should not make any changes to the headers or columns of the CSV. This will result in the CSV being invalidated.
CPU type format
e.g. Intel Xeon CPU E5-2670 v2 @ 2.50GHz, AMD EPYC 7B12 @ 2.60GHz
Infrastructure_Settings

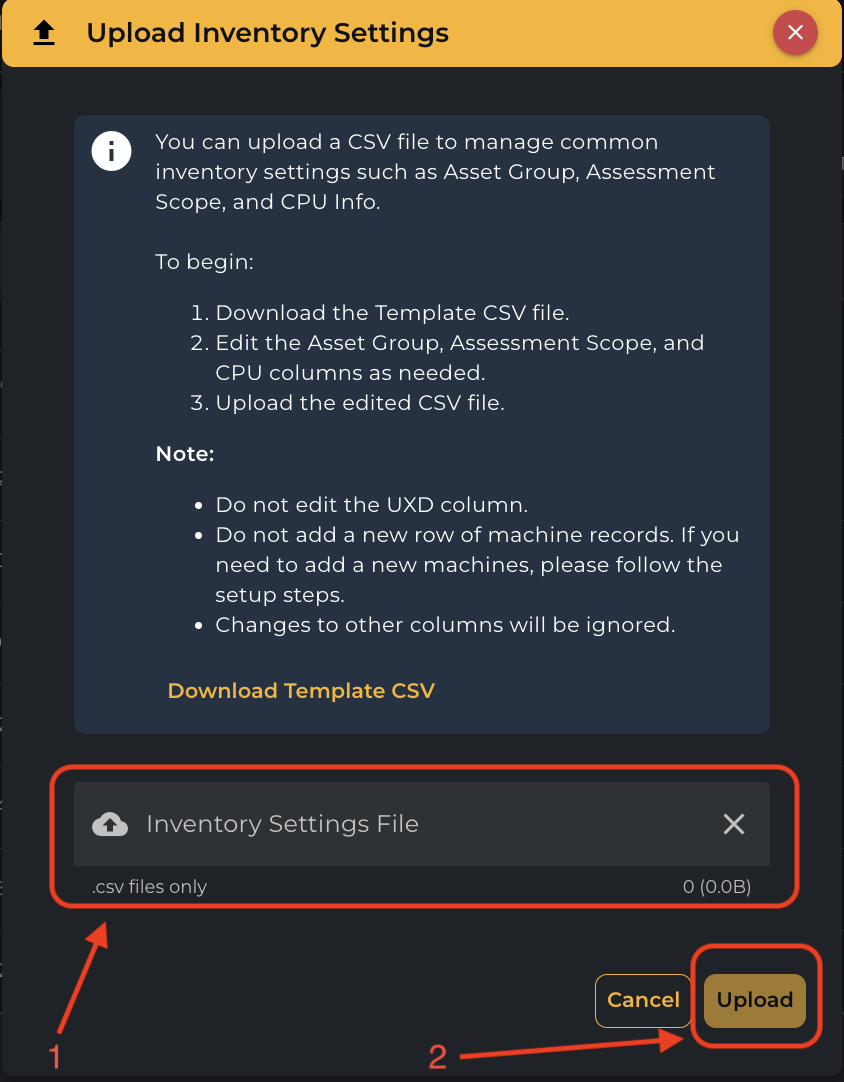

Once the desired changes are made to the records user can upload the CSV back to the system. The user will need to carry out the following actions to upload the file.
Click the “Inventory Settings File“ button to choose a file from the file system.
Once the correct file is chosen, click the “Upload“ button to upload it back to the system.
Upload CSV

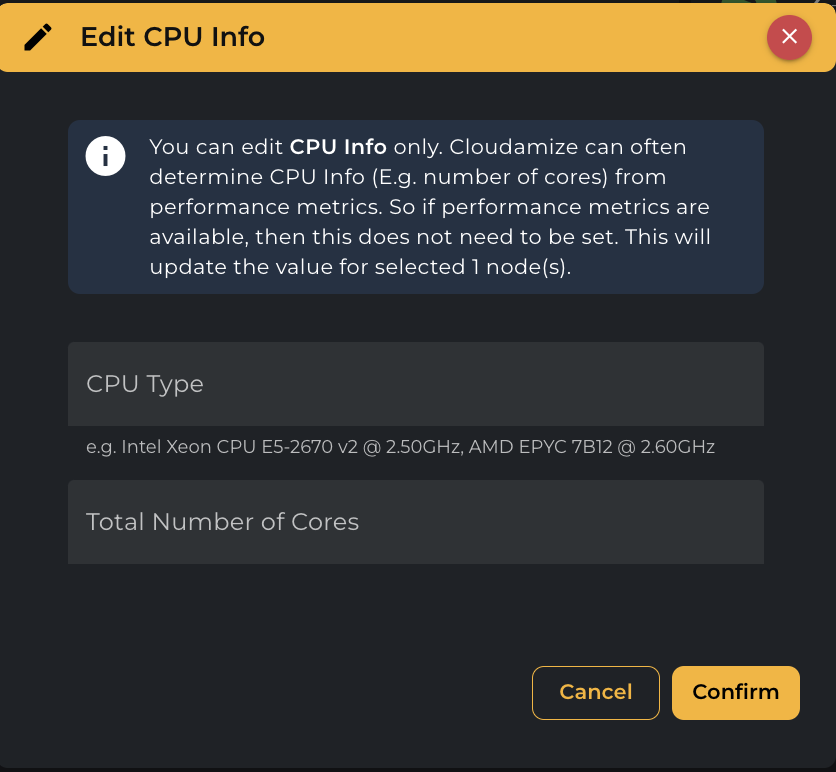

The Edit CPU info button also allows you enter the CPU type and the Total number of cores manually for a selected node/nodes and then click on Confirm as shown in the screenshot below.

Edit CPU Info
Note: Instances cannot be removed once the assessment has started. The remove option will be disabled.
Infrastructure views

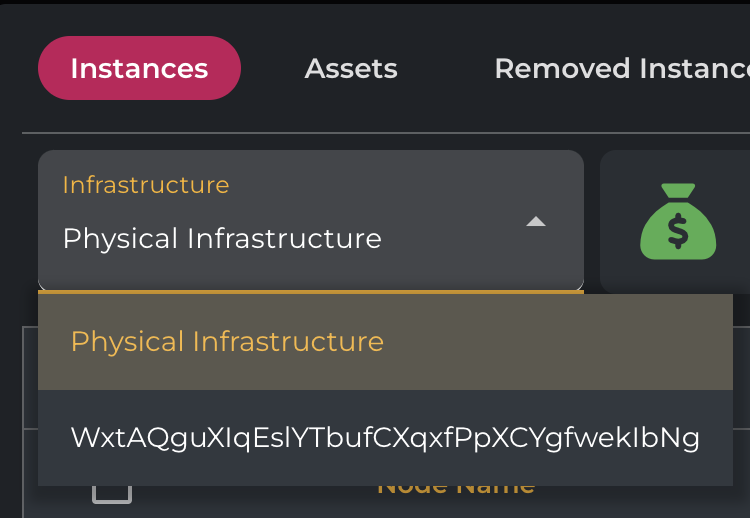

By selecting View Infrastructure, we can change views between Physical Infrastructure and Hypervisors. Selecting a Hypervisor lets us view all the VMs on a specific Host.
By selecting Physical Infrastructure, we will be able to see all the nodes with agents installed or monitored by an agentless data collector, even if they are already being monitored.

Nodes Overview

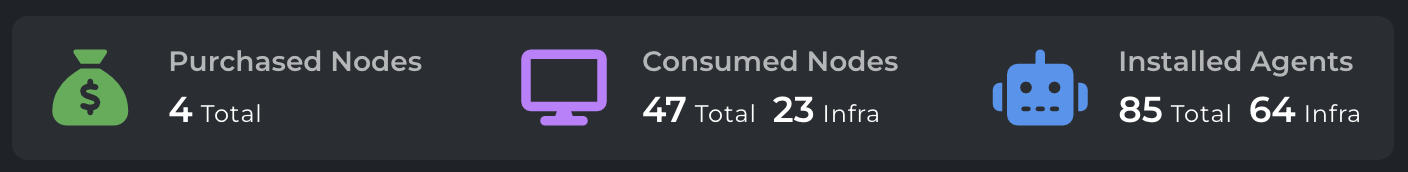

At the top right of the inventory settings page, there will be the following three fields:
Purchased Nodes - The total number of licenses assigned to the assessment.
Consumed Nodes - The total number of licenses consumed by the instances included in scope (one per instance).
Installed Agents - The total number of nodes monitored by Cloudamize Agents and/or Agentless Data Collectors, including any Removed Instances.

Note: This is a demo screenshot. It is not possible to launch an assessment that has more consumed licenses than are purchased.
Asset Tab
We can create and edit new asset groups within the Assets tab. Asset groups allow for easy management of a group of machines during data collection and within the Migration Planner.

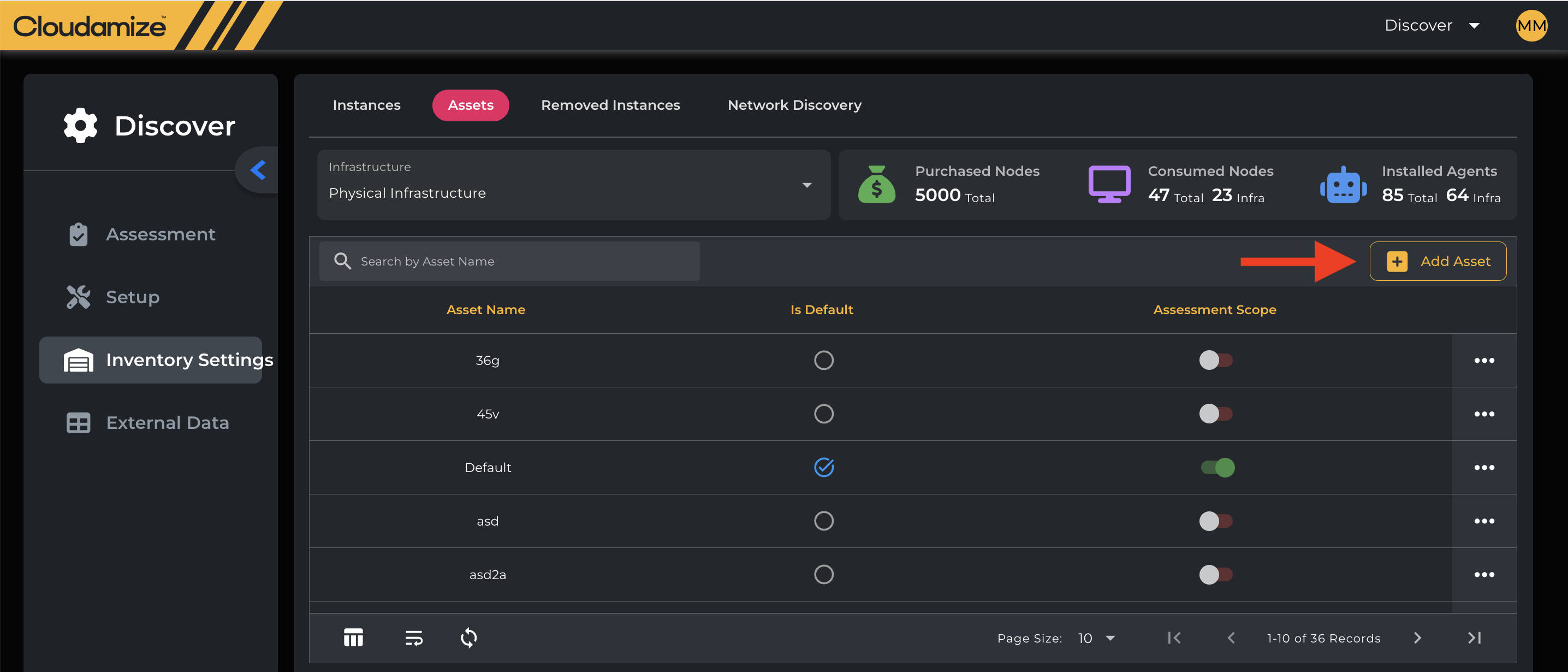

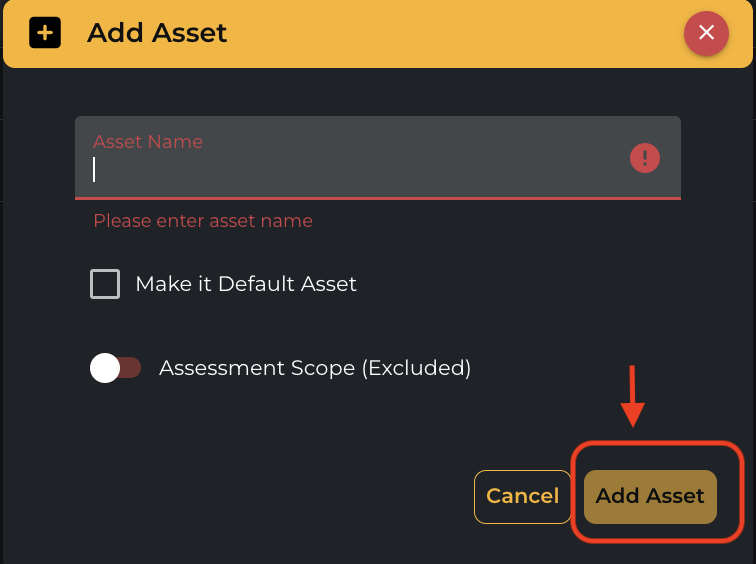

To create a new asset group, enter a name, toggle if you want it in scope or excluded, and then click add.

Assets tab

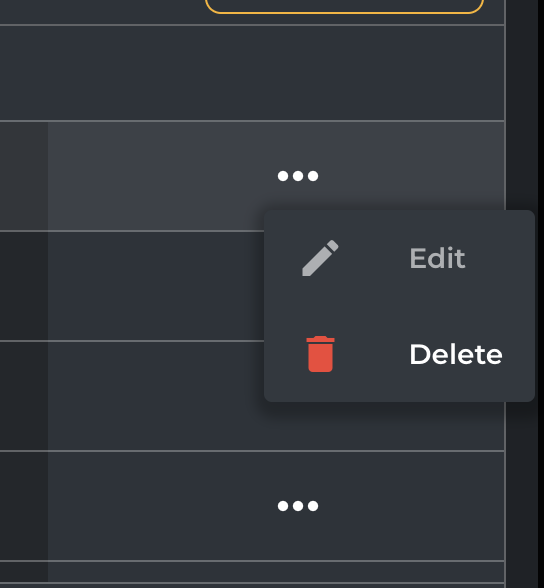

Asset groups can be edited or deleted by clicking the three dots and selecting the appropriate option.

Edit or Delete Options
Removed Instances Tab
Instances can be removed from the assessment in certain cases, such as when duplicates are created or to tidy up the portal by eliminating unwanted nodes.

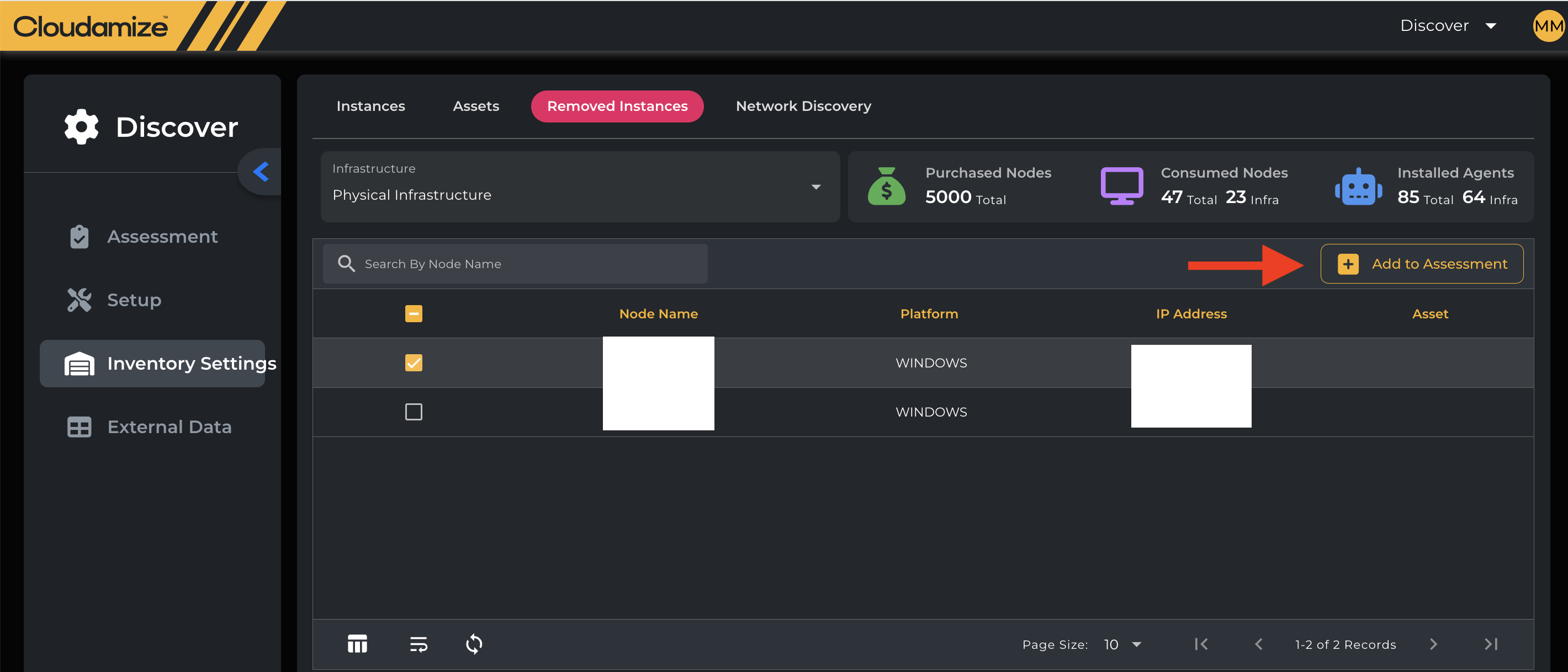

If you need to re-add an instance that has been removed from the assessment, you can find a list of removed instances in this tab. To re-add, check the box next to the desired server(s) and click “Add to Assessment.”

Removed Instances Tab(anonymized)
Network Discovery Tab
The Network Discovery Inventory Settings Tab is available under the Discovery Option. To access this tab, select the “Discover” option from the Cloudamize Landing Page.

Once the tool has completed its run and uploaded the data to the Cloudamize portal, you can view the results on the Network Discovery tab in the Inventory Settings page of the portal.

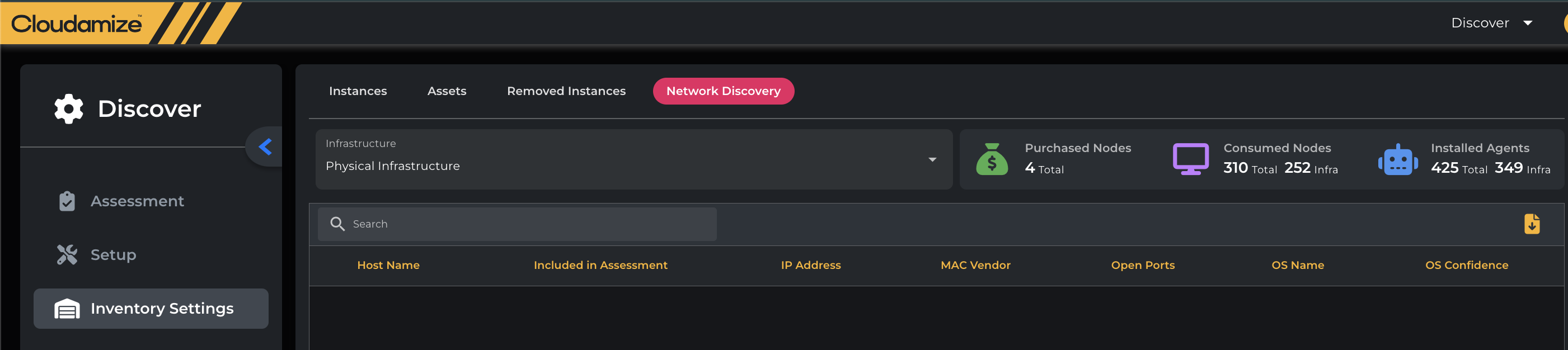

Network Discovery Tab, Before Data Upload-

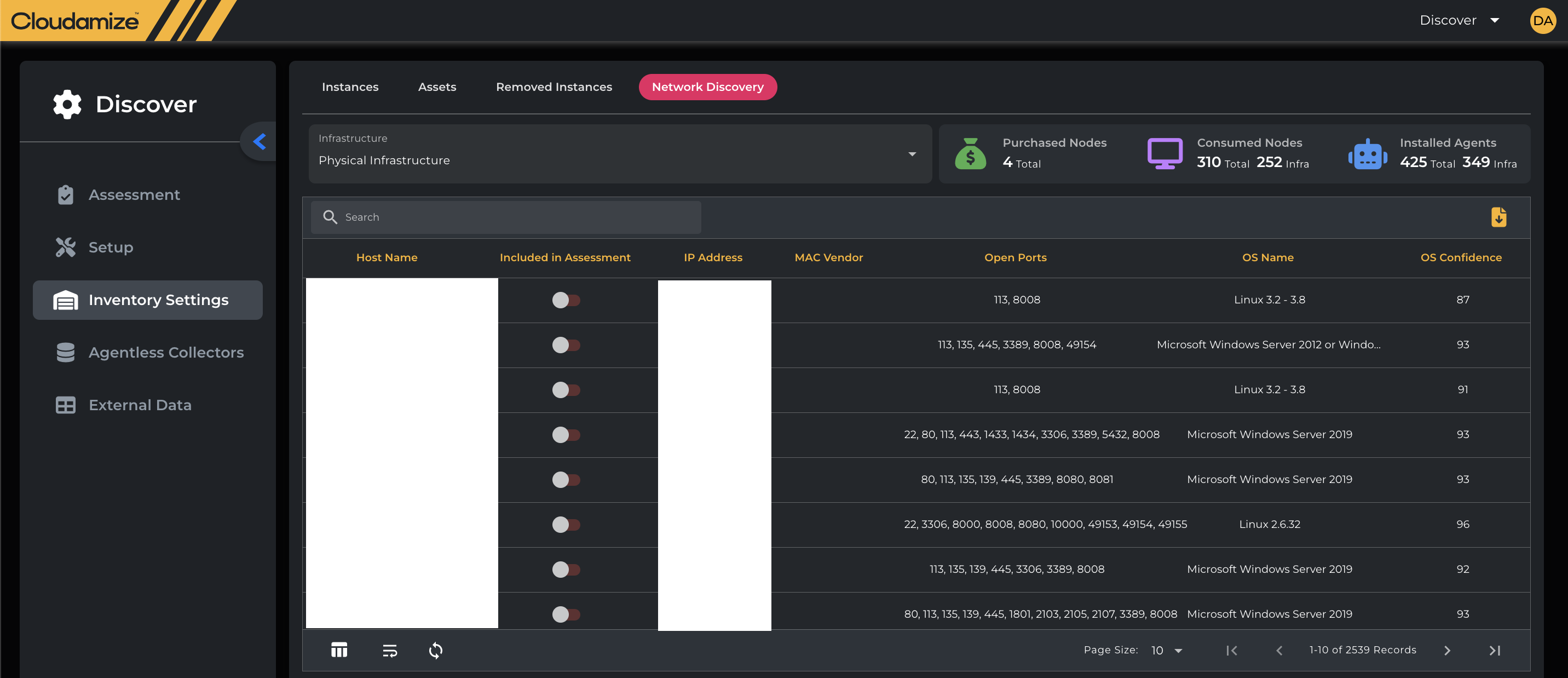

Network Discovery Tab, After Data Upload-

On this tab, you can view all discovered network devices and any related details that have been discovered, labeled by column. The results are searchable using the search box in the top left.
The network discovery agent will collect the following
Hostname
Host(IP address)
MAC Vendor
Open Ports
OS Name
OS Confidence
The “Included in Assessment” column identifies any servers that are connected to the portal by a Cloudamize data collector - Agent, Agentless, Hypervisor, or vCenter connections are all valid connections. Using this, you can identify servers that aren’t currently included in the assessment and quickly add them if desired, for example, by adding their IP address to an existing Agentless Data Collector.
Support
The Network Scanner wrapper is provided as-is. Cloudamize can offer assistance in configuring the command line for the tool, but cannot offer support for the nmap tool itself.
If you have any queries, please contact the helpdesk.
